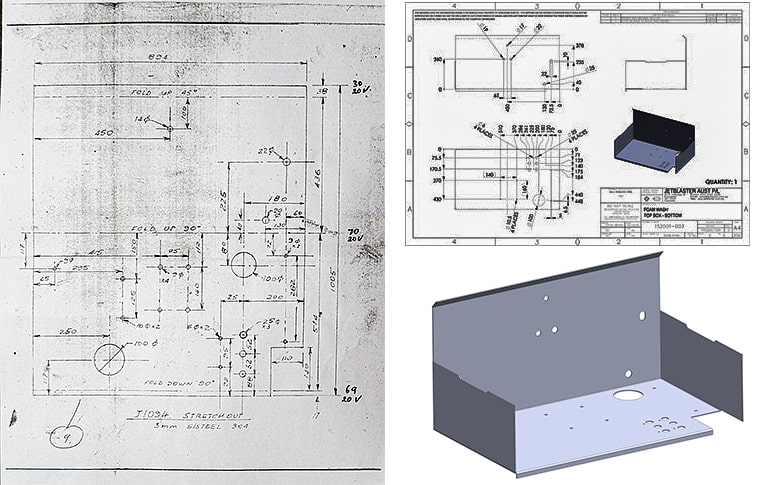

We will take your paper drawings and create a 3D CAD model which can be used to create new drawings for manufacture.
Parametric modeling is an approach to 3D CAD in which a model is built up step-by-step using features and constraints to capture design intent. Unlike direct modeling, designers can create parameters to sketch and dynamically size 3D objects.
The parametric modeling process allows for intent and relationships to be created between geometric features, which means the shape of your model changes as soon as a dimension value is modified.
A sheet metal flat pattern is a representation of the flat product before it is bent.
A 3D model of the finished part can be created first, then a flat pattern can be extracted.
Or a flat pattern can be modelled first, then bent to form the finished part.
The assembly can be used to check that all the components fit together correctly.

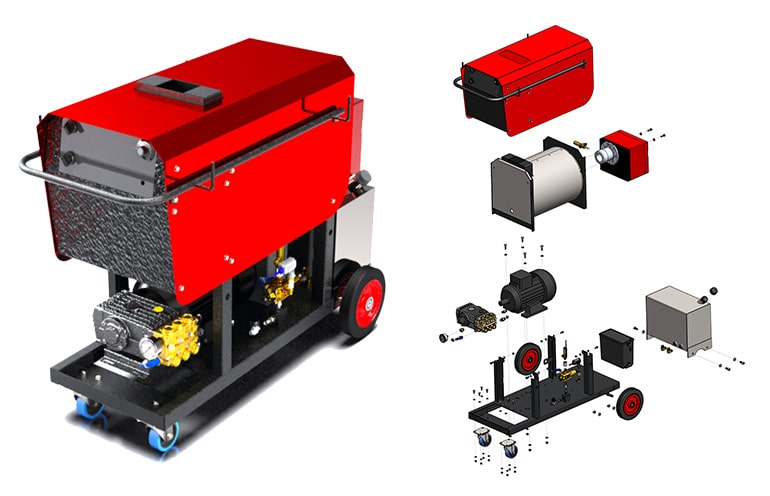

Exploded views are used to show the assembly sequence of parts in the assembly.
The exploded view drawing is used in parts catalogs, assembly and maintenance manuals and other instructional material.
Drawings are created by placing views of the 3D CAD model onto the drawing sheet.
The views include orthographic, isometric, section and more.
A bill of materials can be included to show all the components of the assembly.
Rendering is the process of creating a raster image based on the 3D objects in a scene.
A realistic rendering of a 3D model can often give a product team or prospective client a clearer vision of a conceptual design than a printed drawing.
