MYLE™ Heavy Duty Cargo Trailer
from $6,600
Move Your Load Easily & safely with this stable MYLE™ cargo trailer.
Can be used with most regular bikes & e-bikes and can easily transport a 200kg load.
Hitch plate attaches to the rear of the rack of most bikes, allowing the rear rack to be used as normal, or attached to the lower rear frame of a trike.
Can be used as a hand trolley to move cargo in warehouses, factories or pedestrian zones in urban areas. With throttle up to 6km/h.
Pedal Assist sensor picks up front wheel movement & activates front wheel motor, up to 25km/h.
3 hydraulic disc brakes on trailer are controlled by brake lever on bike.
Hydraulic brake hose has Quick-connect near trailer hitch to allow easy un-hitching of trailer without messy oil leaks.
A ‘D’ pin attaches trailer to hitch.
2 Versions: Electric or Non-Electric
The Pedal Assist Control Panel is used to turn the PAS On and Off.
The Throttle is used to move the trailer at 6km/h when it is off the bike.
4 piston hydraulic brake calipers on rear wheels, 2 piston on front.
203mm disc rotors on 3 wheels.
15mm Thru axles on rear.
Quick Connect hydraulic brake hose.
RST Dirt forks, 80mm travel.(Electric version shown)
Rear lights.
Optional Indicators.
Tie-down anchor track.
Rubber buffers to allow vertical storage of trailer.
Battery is enclosed in weatherproof lockable case.
Rear supports to help stop the trailer tipping when loading heavy items or standing on platform.
Ramp allows easy loading & unloading of cargo.
Hitch plate attaches to the rear of the rack of most bikes, allowing the rear rack to be used as normal
Hitch plate attaches to the lower rear frame of a trike.

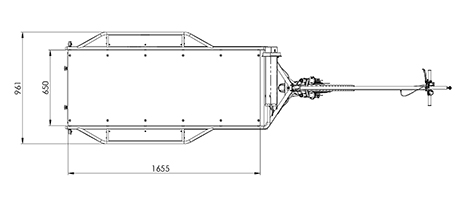

| LOAD PLATFORM | LENGTH: 1655mm |
| WIDTH: 650mm | |
| MATERIAL: 12mm MARINE PLYWOOD | |
| HEIGHT ABOVE GROUND: 192mm | |
| LOAD CAPACITY | 200kg |
| COLOURS | RAL 3001 Signal Red | RAL 6018 Green |
| RAL 1007 Safety Yellow | RAL 1013 Pearl White | |
| RAL 5015 Blaze Blue | RAL 9005 Jet Black | |

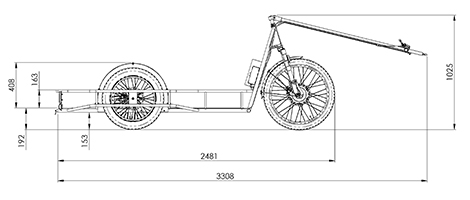

| LENGTH | Rear to front wheel: 2481mm |
| Rear to Steering Arm attached to bike: 3308mm | |
| WIDTH | Across frame at rear wheels: 961mm |
| HEIGHT (UNLOADED) | At Steering Arm pivot: 1025mm |
| WEIGHT (UNLOADED) | Electric version: 59kg |
| Non-Electric version: 45kg | |
| GROUND CLEARANCE (UNLOADED) | To underside of frame: 153mm |
| MOTOR | Bafang 250W Hub with movement sensor to activate motor assistance |
| Max. Speed while pedalling: 25km/h | |
| Max. Speed using throttle: 6km/h | |
| THROTTLE | Positioned on Steering Arm & bike handlebars |
| BATTERY | 36V 28Ah 1kWh. Panasonic cells NCR18650 |
| CHARGER | 36V 2Ah, Charge time from empty: 6 hrs |
| RANGE * | ~100km with no load. ~70km with full load. |
*Actual range depends on many factors such as the steepness of the terrain, headwinds, weight of load
Click here to download Trailer Specs
MYLE Heavy Duty Cargo Trailer. View video on Youtube
2 year frame, forks & wheels.
1 year warranty for powdercoating, battery and lights.
Any warranty claims must be returned for inspection.
